173268 - Ornamental Groove Shank-Type Cutterheads SuperProfiler HW
Product
Drawing
-
- Tungsten Carbide [HW]
- MEC
Technical data
Description
Machine / Application
- CNC routers

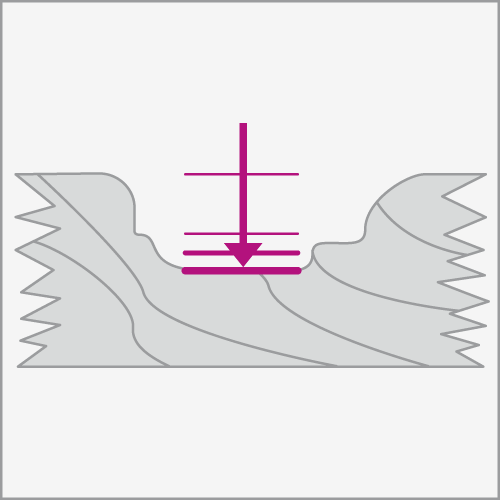

- for cutting of ornamental grooves in solid woods and wood-based panels
Design
- with positive shear angle
- cutting material: HW HL Board 06 for hard woods and wood-based panels
- cutting material: HW HL Solid 60 for soft woods
- n max = 18,000 min-1
Advantages
- cutterhead for mounting of several profile knives
Notes
- profile knife can be profiled according to customer specifications
- Clamping elements: ps-System, TRIBOS , draw-in collet chuck
- included in delivery: cutterhead body with clamping elements without profile knives and support plates
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 59 [mm] | |
| L2 = Cutting width | 13 [mm] | |
| Ø d = Shank diameter | 25 [mm] | |
| L3 = Shank length | 62 [mm] | |
| L1 = Total length | 97 [mm] | |
| Z = No. of teeth | 2 | |
| nmax = maximum RPM | 18,000 [min-1] | |
| Tmax = Maximum profile depth | 13 [mm] | |
| Drawing = Profilable area | SP 17 [Foil] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
