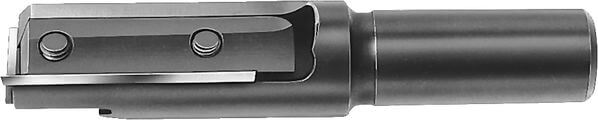

175714 - Shank-Type Cutters with HW Turnover Knives - Z=1+1 with mini turnover knives
Product

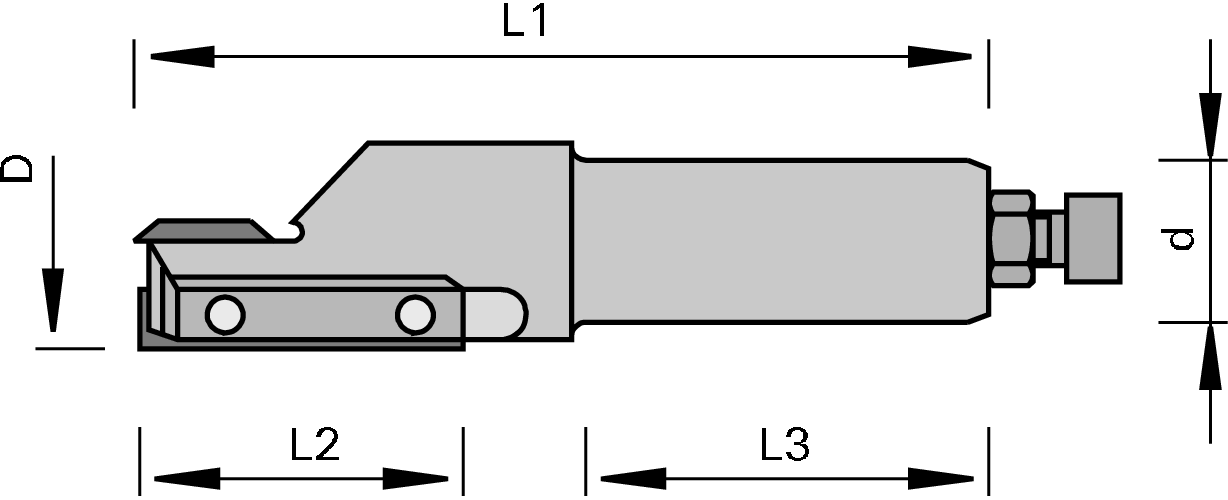

Drawing
-
- Tungsten Carbide [HW]
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for jointing, rabbeting and grooving in solid woods and wood-based panels
- for cutting of cut-outs and contours
- traveling plunge cut using Z and X or Y axis
Design
- 1 cutting edge parallel to cutter axis and peripheral cutting
- 1 plunging tip
- cutting material: HW HL Board 05
- with attachment screw
Advantages
Notes
- Clamping elements: ps-System, TRIBOS , draw-in collet chuck, adapter
- with attachment screw
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 16 [mm] | |
| L2 = Cutting width | 50 [mm] | |
| Ø d = Shank diameter | 16 [mm] | |
| L3 = Shank length | 45 [mm] | |
| L1 = Total length | 106 [mm] | |
| Z = No. of teeth | 1+1 | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
