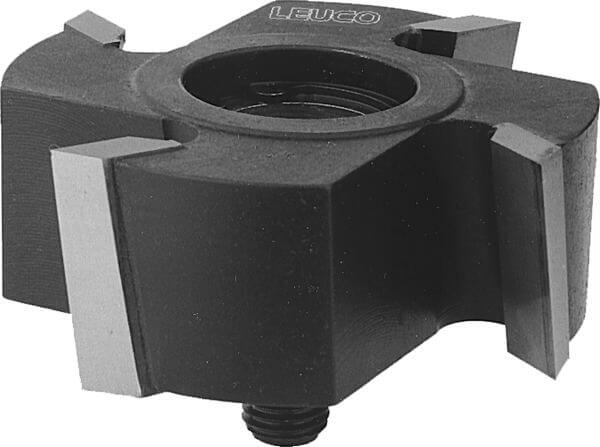

Edge Jointing Cutters CM HW HSK 25R - Homag
Product
Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- edge banding machines Homag
- for flush-cutting and chamfering of solid wood, veneer and plastic edge bands
Design
- with shear angle
- n max = 18,000 min-1
Advantages
- optimum cutting quality thanks to high concenctric accuracy and precise tool balancing
- optimized chip removal thanks to internal chip evacuation
- less chips remain inside of the machine
- no malfunctions due to chips
- reduction of suction power
- noise reduced
Notes
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
Ø d
[mm] |
Z |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 70 | 25 | HSK 25R | 4 | 18,000 | L | 180765 | ||
| 70 | 25 | HSK 25R | 4 | 18,000 | R | 180766 | ||
