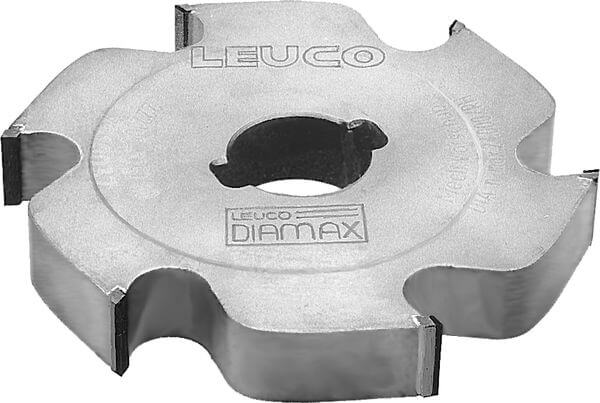

175788 - DIAMAX Edge Jointing Cutters DP - SCM-IDM
Product

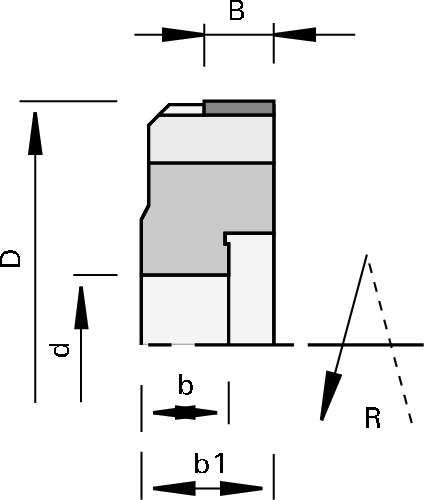

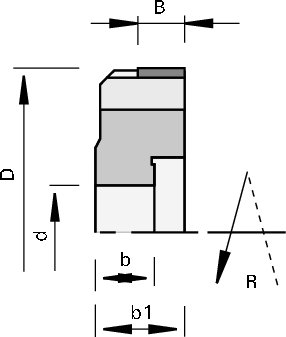

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines
- for jointing and flush-cutting of solid wood, veneer and plastic edge bands
Design
- polished face and high-finish clearance angle
- reduced resharpenable area
- straight cutter axis
- n max = 24,000 min-1
Advantages
- optimum cutting quality thanks to high concenctric accuracy and precise tool balancing
Notes
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 70 [mm] | |
| B = Cutting width | 10 [mm] | |
| b = Hub width | 12.5 [mm] | |
| b1 = Hub width 1 | 19 [mm] | |
| Ø d = Bore diameter | 20 [mm] | |
| Z = No. of teeth | 6 | |
| DKN = Double keyway | 5x2,3 [mm] | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Machine/Type | SCM-IDM | |
|
Dimensions entered are not listed?
available from stock |
||
