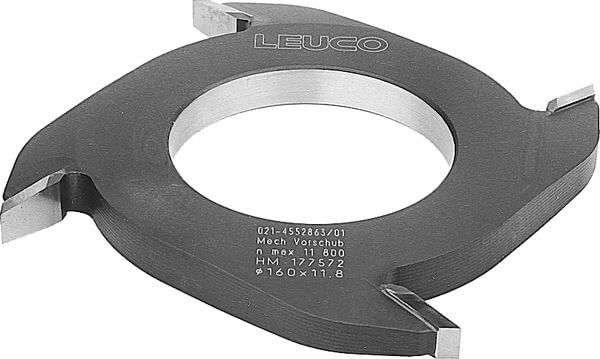

Disc-type Edge Finger Joint Cutters HW

Product

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • finger joint machines
  • for cutting of closed visible longitudinal joints in hard and soft woods

Design

  • high-tensile steel body
  • Ø 160 mm: n max = 11,800 min-1
  • Ø 239 mm: n max = 7,900 min-1
  • Ø 250 mm: n max = 7,400 min-1

Advantages

  • extremely long edge lives thanks to the special coordination of cutting material to the material to be cut and the spiral arrangement of the cutting edges
  • higher process stability thanks to reinforced back

Notes

  • in combination with finger joint cutters with same Ø and pitch
  • Ø 239 mm (half shoulder) only with scoring saw blade

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Partition
[mm] 		Finger joint length
[mm] 		nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

160 11,2 11.4 70 4 3.8 10 11,800 80478293
|
239 11,2 11.4 70 6 3.8 10 7,900 80478289
|
250 11,2 11.4 70 6 3.8 10 7,400 80478292
|
