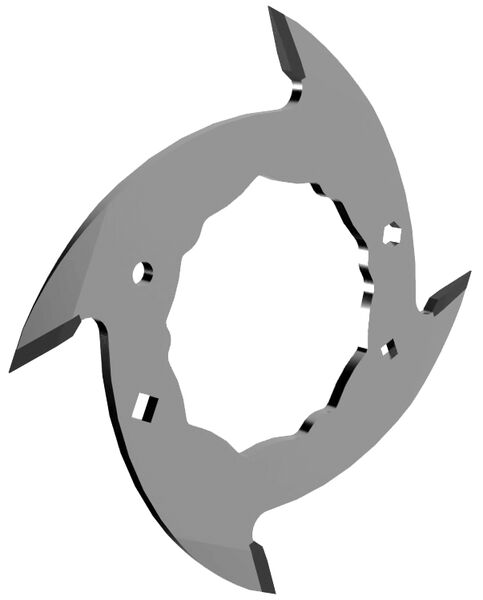

Finger Joint Cutters disc-type HW - easyFix
Product
Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- finger joint machines Grecon/Dimter, SMB, Scharpf + Kögel, Dieffenbacher, NKT
- machines with cross-cutting device
- for longitudinal joints in soft and hard woods
Design
- high-tensile steel body
- topline grinding
- Ø 160 mm: n max = 11,800 min-1
- Ø 210 mm: n max = 7,400 min-1
- Ø 250 mm: n max = 7,400 min-1
- Ø 260 mm: n max = 7,200 min-1
Advantages
- extremely long edge lives thanks to the special coordination of cutting material to the material to be cut and the spiral arrangement of the cutting edges
- higher process stability thanks to reinforced back
- Pin holes for a possible Fibonacci arrangement
- easyFix adapter for a more comfortable equipment
Notes
- adjustable to any wood thickness with bushing
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
Partition
[mm] |
Finger joint length
[mm] |
nmax
[min-1] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 160 | 3,6 | 3.8 | 70 | 2 | 3.8 | 10/11 | 11,800 | hard woods/exotic woods | 80478287 | ||
| 160 | 3,6 | 3.8 | 70 | 4 | 3.8 | 10/11 | 11,800 | hard woods/exotic woods | 80478285 | ||
| 210 | 3,95 | 4 | 70 | 6 | 4 | 10/11 | 7,400 | hard woods/exotic woods | 187833 | ||
| 250 | 3,6 | 3.8 | 70 | 6 | 3.8 | 10/11 | 7,400 | hard woods/exotic woods | 80478283 | ||
| 260 | 3,6 | 3.8 | 70 | 6 | 3.8 | 15/16 | 7,200 | Soft wood | 80478284 | ||
