Twist Drills HS - joinery machines

Product

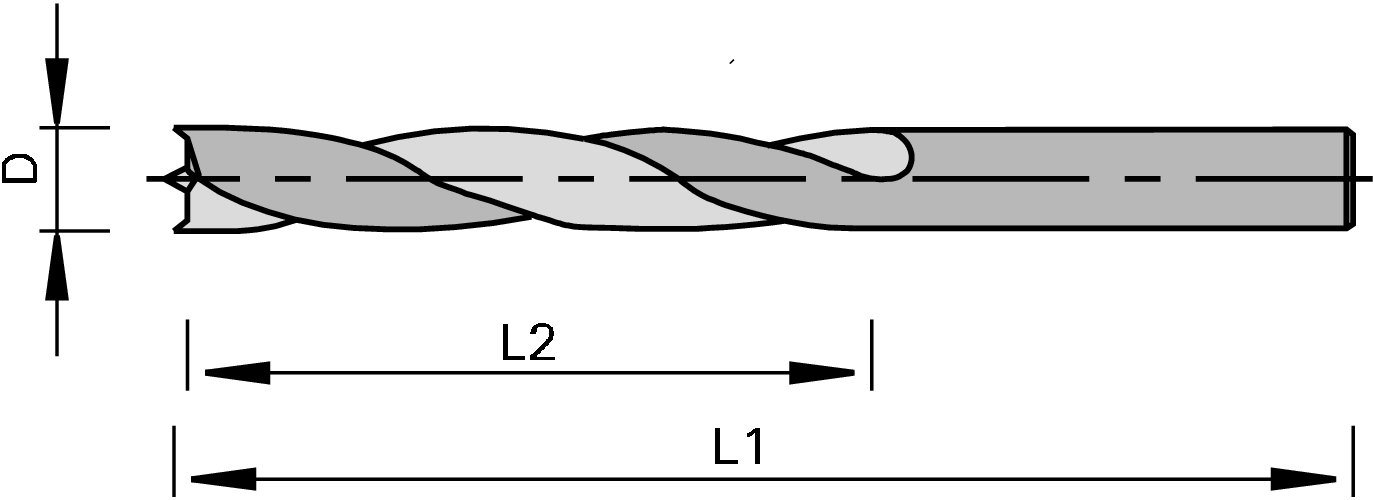

Drawing

High Speed Steel [HS]
MEC

current tab: current tab: Article

Article

Machine / Application

Joinery machines
also for Weinmann and Hundegger
for precise holes in all wood-based materials

Design

2 spurs
Centering point
special coating
Deep hole spiral

Advantages

chip-free hole edges thanks to spurs
centering point for safe spot drilling
long edge lives thanks to special coating
very good chip evacuation thanks to a deep hole spiral and a special coating

Notes

clamping element: draw-in collet chuck, drill chuck

Showentries

	Ø D [mm]	L2 [mm]	Ø d [mm]	L3 [mm]	L1 [mm]	Z	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting. available from stock available on short notice Delivery time on request
	3	200	3,0	50	250	2	R	80484170	\|
	4	200	4,0	50	250	2	R	80484171	\|
	5	200	5,0	50	250	2	R	80484172	\|
	6	200	6,0	50	250	2	R	80484173	\|
	7	200	7,0	50	250	2	R	80484174	\|
	8	200	8,0	50	250	2	R	80484175	\|
	9	200	9,0	50	250	2	R	80484176	\|
	10	200	10	50	250	2	R	80484177	\|
	11	200	11	50	250	2	R	80484178	\|
	12	200	12	50	250	2	R	80484179	\|

Show 1 to 10 of 47 entries
