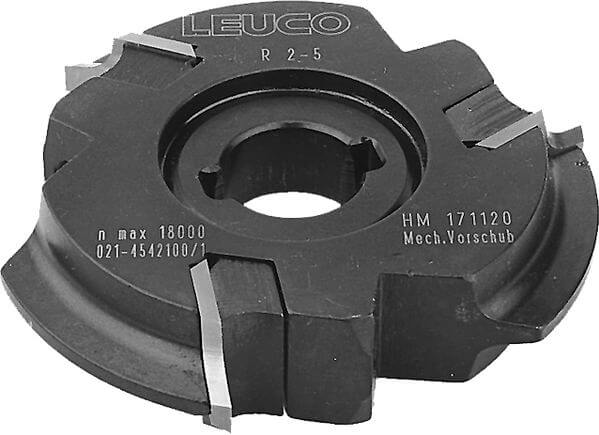

Edge Rounding Cutterheads HW

Showentries

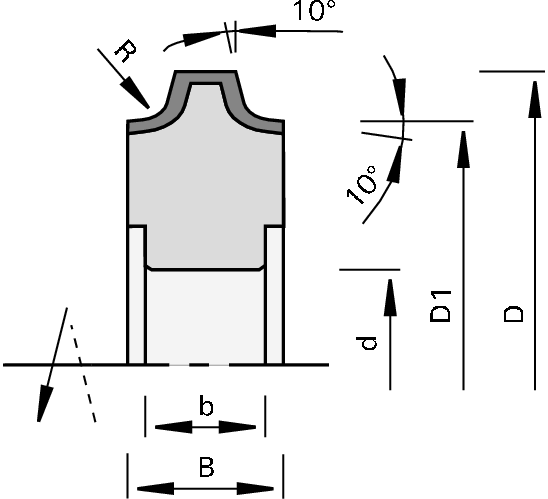

	R [mm]	Ø D [mm]	Ø D1 [mm]	B [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	nmax [min-1]	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting. available from stock available on short notice Delivery time on request
	2,0	57	50	12	12	16	2	5x2,3	18,000	HOLZ-HER	170338	\|
	3,0	57	50	12	12	16	2	5x2,3	18,000	HOLZ-HER	170339	\|
	2,0	58	50	12	10	16	4	5x2,3	18,000	Brandt	177030	\|
	3,0	58	50	12	10	16	4	5x2,3	18,000	Brandt	177031	\|
	2,0	62	50	16	10	16	2	5x2,3	18,000	HOLZ-HER	179997	\|
	3,0	62	50	16	10	16	2	5x2,3	18,000	HOLZ-HER	169241	\|
	5,0	62	50	16	10	16	2	5x2,3	18,000	HOLZ-HER	169243	\|
	2,0	73	61	16	11	16	3	5x2,3	18,000	Homag, Ott	171128	\|
	3,0	73	61	16	11	16	3	5x2,3	18,000	Homag, Ott	171129	\|
	4,0	73	61	16	11	16	3	5x2,3	18,000	Homag, Ott	171130	\|

Show 1 to 10 of 27 entries
