Articles found: 2

Your can restrict your selection by using the other filters!

Reset

Selection via tool type

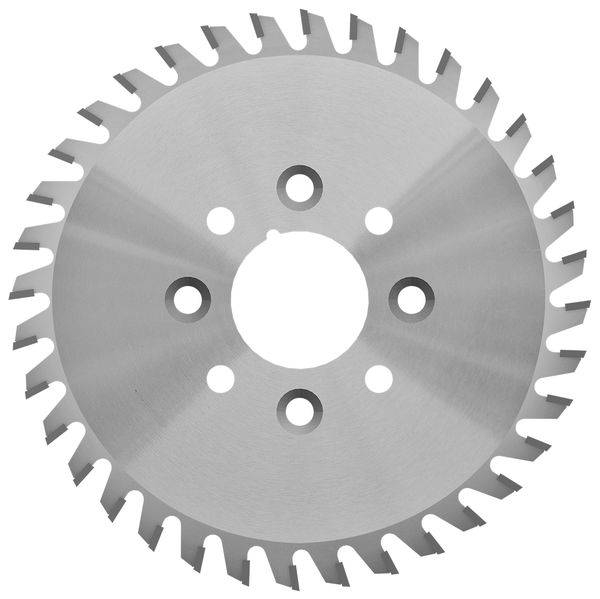

Grooving Saw Blades DP - machining centers

Product

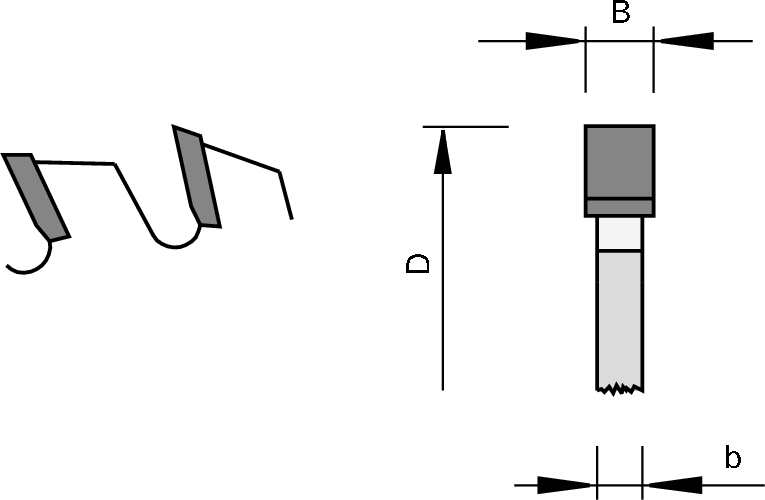

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • CNC machining centers
  • for chip-free grooving in solid woods and in wood-based panels

Design

  • positive hook angle
  • without shear angle
  • pin holes with countersink
  • tooth configuration: flat "F"

Advantages

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

125 3,2 2.2 30 36 4/6,1/48 + 4/6,1/48 Weeke 189649
|
125 4,0 3 30 36 4/6,1/48 + 4/6,1/48 Weeke 189648
|
Show 1 to 2 of 2 entries
