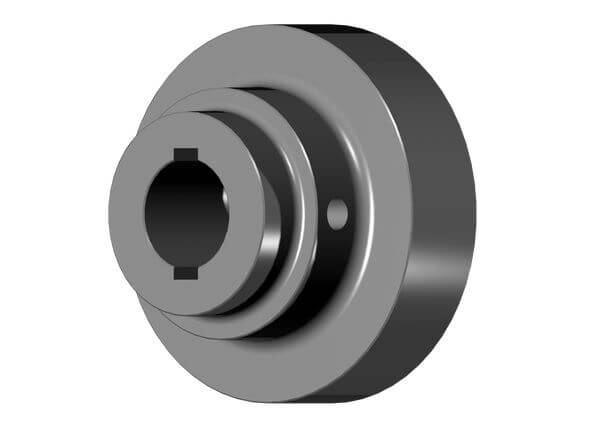

Hydro Clamping Bushings - hoggers

Product

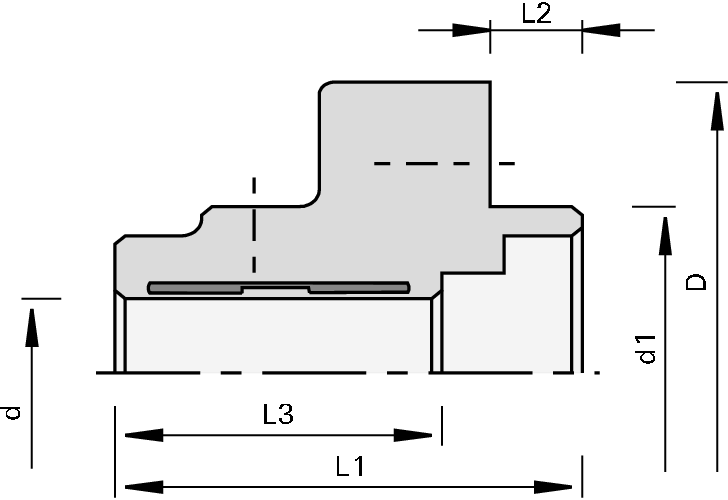

Drawing

Article

Description

Machine / Application

  • for mounting of tools with bore with LEUCO hoggers Ø 200 mm and Ø 250 mm

Design

  • hardened tool mounting area
  • with one clamping zone
  • closed hydraulic expansion clamping chuck for tight-tolerance fit on the motor shaft
  • n max = 9,000 min-1

Advantages

Notes

  • for clockwise and counter-clockwise rotation
  • fits conventional motors with shaft 35 mm and keyway

Table- and picture caption ...

Ø d1
[mm] 		L2
[mm] 		Ø d
[mm] 		Ø D
[mm] 		L1
[mm] 		L3
[mm] 		DKN
[mm] 		NL Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

80 17,7 35 120 90 63 10x4 4/M8/100 170264
|
Show 1 to 1 of 1 entries
