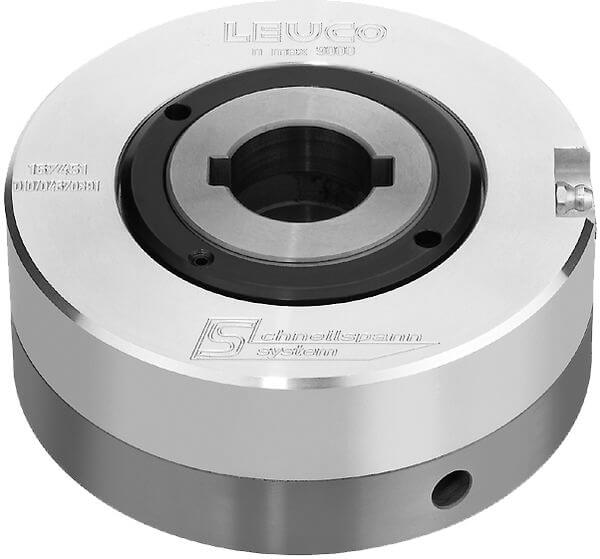

Clamping Systems Ø 140 mm

Product

Drawing

Article

Description

Machine / Application

  • double end tenoners
  • through feed machines
  • for mounting of tools with bore and for combination with mounting flanges Ø 140 mm

Design

  • n max = 9,000 min-1

Advantages

  • excellent balance quality
  • long tool life thanks to hardened tool mounting area
  • consistent runout accuracy after each tool change
  • minimization of setup-times thanks to easy and quick tool change
  • maintenance-free and protected from dust

Notes

  • for clockwise and counter-clockwise rotation
  • mounting examples (see drawings): shaft with internal thread, shaft with external thread
  • indicate machine type and shaft design when placing an order
  • required tool adapters Class-No. 997370
  • for changing the tools the pneumatic part Ident-No. 058250 is necessary
  • operational pressure 6 bar
  • included in delivery: clamping part incl. cap for attachment on the machine spindle (spare parts for Homag and IMA not included in delivery)

Table- and picture caption ...

Ø d
[mm] 		Ø D
[mm] 		Ø D2
[mm] 		L1
[mm] 		L3
[mm] 		DKN
[mm] 		Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

35 140 80 57 41.5 10x4 Homag, IMA 167451
|
