CD070 Boring countersinks 120/60+90 DP

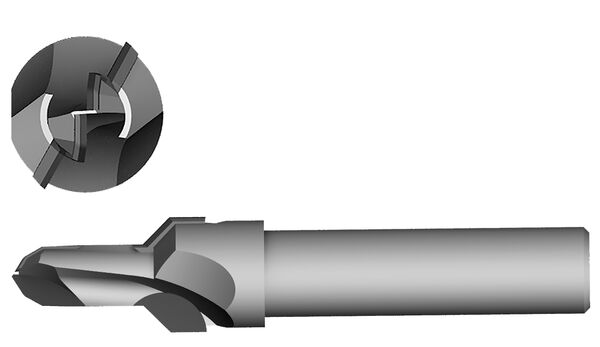

Product

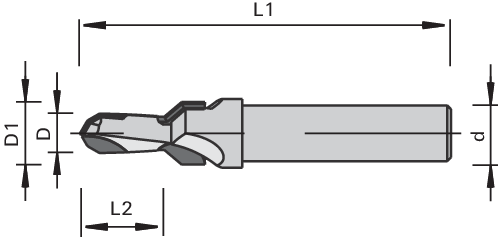

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • best results on CNC and gantry machines but also suitable for ADUs and MDUs
  • For drilling and countersinking in one pass (one-shot)

Design

Advantages

  • Reduce the processing times by combining several passes

Notes

  • Plunging tip available in DP, Solid DP, complete DP or VHW according to the requirements

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø D1
[mm] 		Ø d
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

12.05 45 16 12 120 2+2 R 187163
|
8.2 45 14 12 120 2+2 R 187164
|
8.55 14 16 12 80 2+2 R 187165
|
Show 1 to 3 of 3 entries
