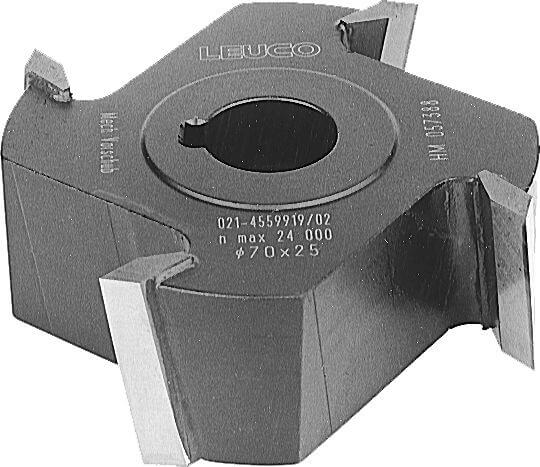

Edge Jointing Cutters HW

Product

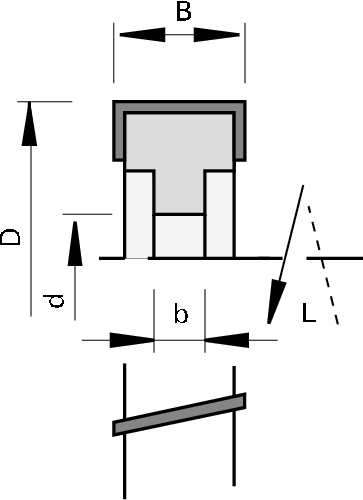

Drawing

Tungsten Carbide [HW]
MEC

current tab: current tab: Article

Article

Machine / Application

edge banding machines
for jointing and flush-cutting of solid wood, veneer and plastic edge bands

Design

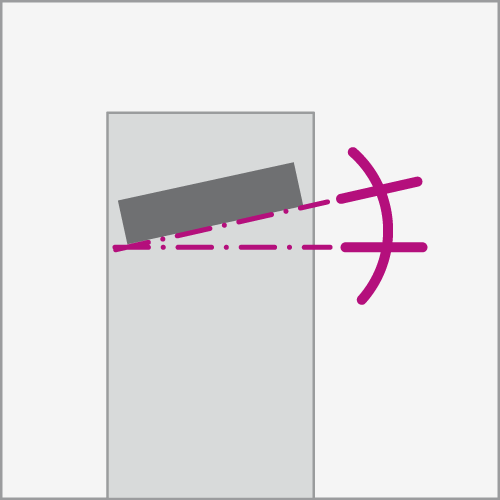

with shear angle
n max = 18,000 min-1

Advantages

Notes

sense of rotation according to VDMA 8849

Showentries

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	Shear∡ [°]	nmax [min-1]	L/R	Machine/Type	Remarks	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	70	25	10.5	16	4	5x2,3	10	24,000	L	Homag	Fig.2	180796	\|
	70	25	10.5	16	4	5x2,3	10	24,000	R	Homag	Fig.2	180795	\|
	100	25	15	30	4		15	18,000	L		Fig.2	160647	\|
	100	25	15	30	4		15	18,000	R		Fig.2	160109	\|

Show 1 to 4 of 4 entries
