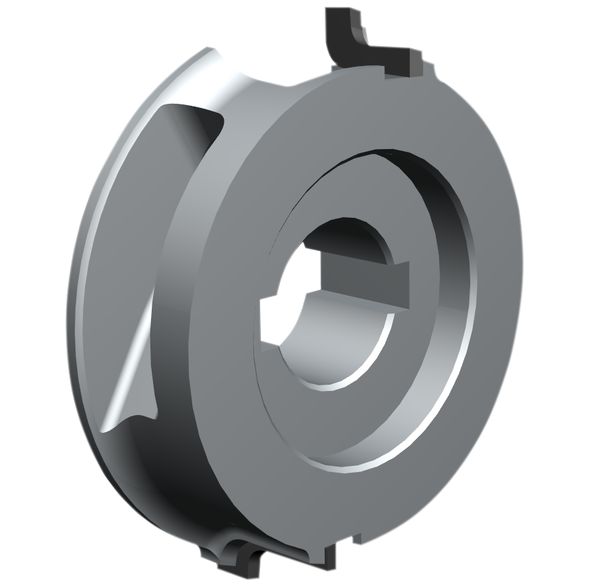

DIAMAX Edge Rounding Cutters DP - HOLZ-HER FR201 - AirStream-System

Product

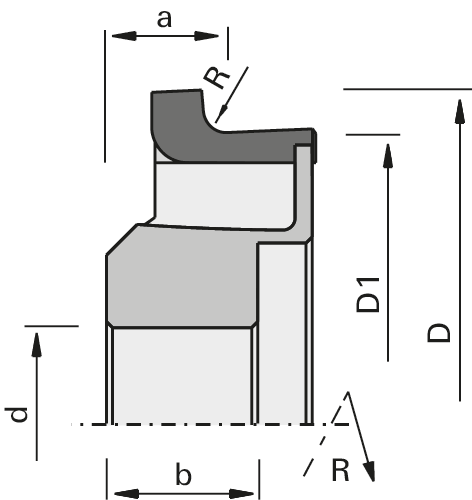

Drawing

Polycrystalline diamond [DP]
MEC

current tab: current tab: Article

Article

Machine / Application

edge banding machines HOLZ-HER aggregate FR201 (1825M)
for rounding of solid wood, veneer and plastic edge bands

Design

AirStream-System
with shear angle
polished face and high-finish clearance angle
n max = 24,000 min-1

Advantages

considerably increased chip caption degree thanks to AirStream-System
less chips remain inside of the machine
no malfunctions due to chips
reduction of suction power
very low noise level

Notes

constant basic dimensions a and D1
sense of rotation according to VDMA 8849
not for resharpening

Showentries

	R [mm]	Ø D [mm]	Ø D1 [mm]	a [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	nmax [min-1]	L/R	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	1,0	57	50	10	12.5	16	2	5x2,3	24,000	L	HOLZ-HER FR201	185430	\|
	1,0	57	50	10	12.5	16	2	5x2,3	24,000	R	HOLZ-HER FR201	185431	\|
	1,3	57	50	10	12.5	16	2	5x2,3	24,000	L	HOLZ-HER FR201	185424	\|
	1,3	57	50	10	12.5	16	2	5x2,3	24,000	R	HOLZ-HER FR201	185425	\|
	2,0	57	50	10	12.5	16	2	5x2,3	24,000	L	HOLZ-HER FR201	185426	\|
	2,0	57	50	10	12.5	16	2	5x2,3	24,000	R	HOLZ-HER FR201	185427	\|
	3,0	57	50	10	12.5	16	2	5x2,3	24,000	L	HOLZ-HER FR201	185428	\|
	3,0	57	50	10	12.5	16	2	5x2,3	24,000	R	HOLZ-HER FR201	185429	\|

Show 1 to 8 of 8 entries
