185440 - DIAMAX Edge Rounding Cutters DP - HOLZ-HER 1827 - AirStream-System

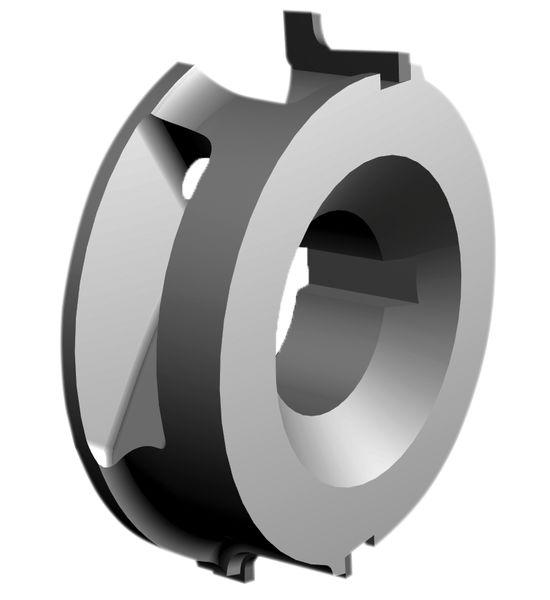

Product

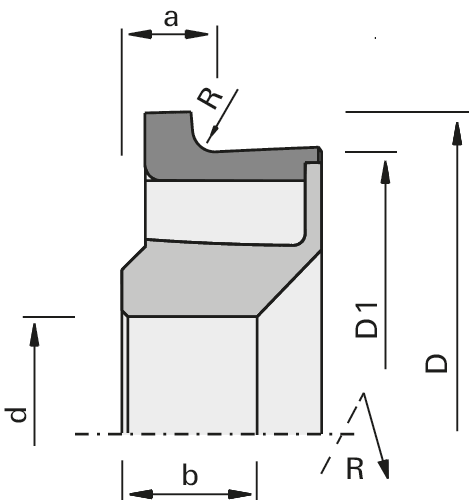

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines HOLZ-HER aggregate 1827
- for rounding of solid wood, veneer and plastic edge bands
Design
- AirStream-System
- with shear angle
- polished face and high-finish clearance angle
- n max = 24,000 min-1
Advantages
- considerably increased chip caption degree thanks to AirStream-System
- less chips remain inside of the machine
- no malfunctions due to chips
- reduction of suction power
- very low noise level
Notes
- constant basic dimensions a and D1
- sense of rotation according to VDMA 8849
- not for resharpening
| Feature | Value | |
|---|---|---|
| R = Radius | 1,0 [mm] | |
| Ø D = Cutting circle diameter | 57 [mm] | |
| Ø D1 = Basis cutting circle diameter | 50 [mm] | |
| a = Distance to machine | 8 [mm] | |
| b = Hub width | 11.5 [mm] | |
| Ø d = Bore diameter | 20 [mm] | |
| Z = No. of teeth | 2 | |
| DKN = Double keyway | 5x2,3 [mm] | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
| Machine/Type | HOLZ-HER 1827 | |
|
Dimensions entered are not listed?
available from stock |
||
