Selection via tool type

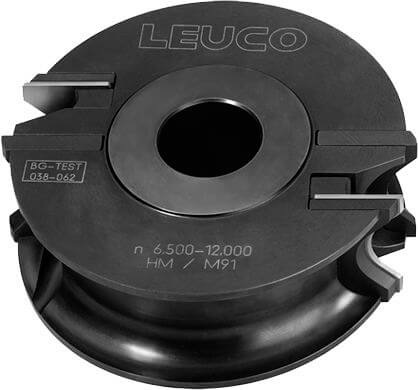

SuperProfiler HW (inside profile) - MAN

Product

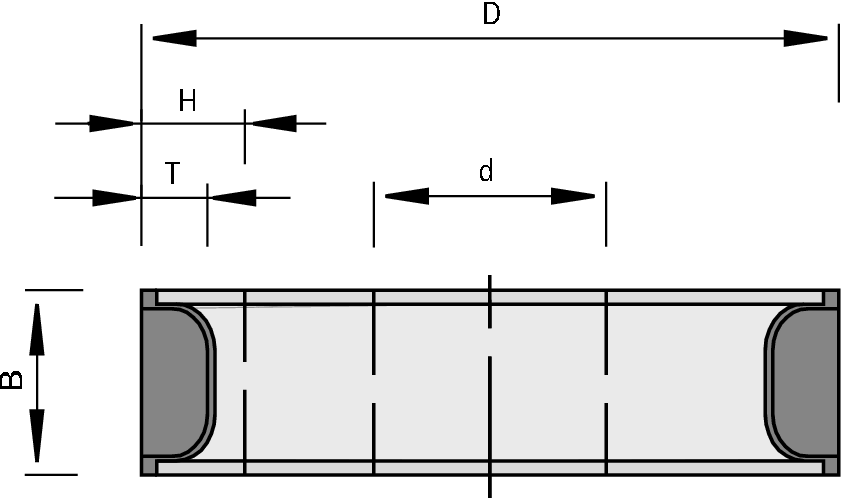

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • for planing and profiling of solid woods and wood-based panels

Design

  • cutting edges parallel to cutter axis
  • n = 6.200 - 10,700 min-1
  • cutting material: HW HL Board 06 for hard woods and wood-based panels
  • cutting material: HW HL Solid 60 for soft woods

Advantages

  • cutterhead for mounting of several profile knives

Notes

  • application against feed
  • profile knife can be profiled per customer specifications
  • included in delivery: cutterhead with clamping elements, without profile knives, support plates and deflectors

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Ø dmax
[mm] 		Z Tmax
[mm] 		Drawing
[Foil] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

125 40 30 35 2 13 SP 1 6200-10700 167263
|
125 60 30 35 2 15 SP 2 6200-10700 167264
|
Show 1 to 2 of 2 entries
