SuperProfiler Blanks HW - B=50 mm

Product

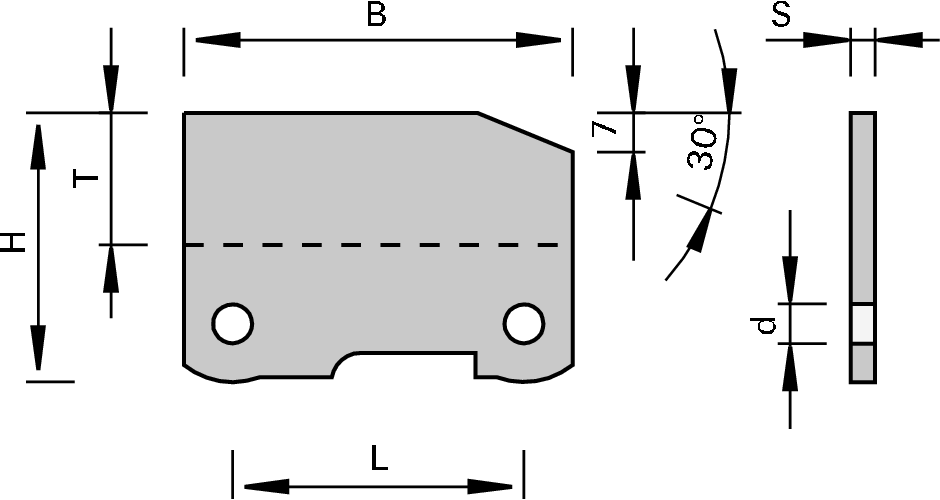

Drawing

Tungsten Carbide [HW]

current tab: current tab: Article

Article

Machine / Application

for use in LEUCO SuperProfiler cutterheads

Design

optionally topline (polished face)
cutting material: HW
HL Board 06 for wood-based panels, plastics and hard woods

Advantages

topline design: highest cutting quality and significantly improved cutting edges

Notes

T = maximum profile depth

Showentries

	Chamfer∡ [°]	B [mm]	H [mm]	S [mm]	Ø d [mm]	L [mm]	Tmax [mm]	LEUCODUR	PU [pc.]	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	30	49,4	44.5	2	5,0	35	22	HL Board 06	10	N	180218	\|
	30	49,4	44.5	2	5,0	35	22	HL Board 06 topline	10	L	180219	\|
	30	49,4	44.5	2	5,0	35	22	HL Board 06 topline	10	R	180220	\|

Show 1 to 3 of 3 entries
