UltraProfiler Blanks HW

precise and automatic positioning of the blanks for profiling and when changing the knives
no stop screw necessary
topline design: highest cutting quality and significantly improved cutting edges

Showentries

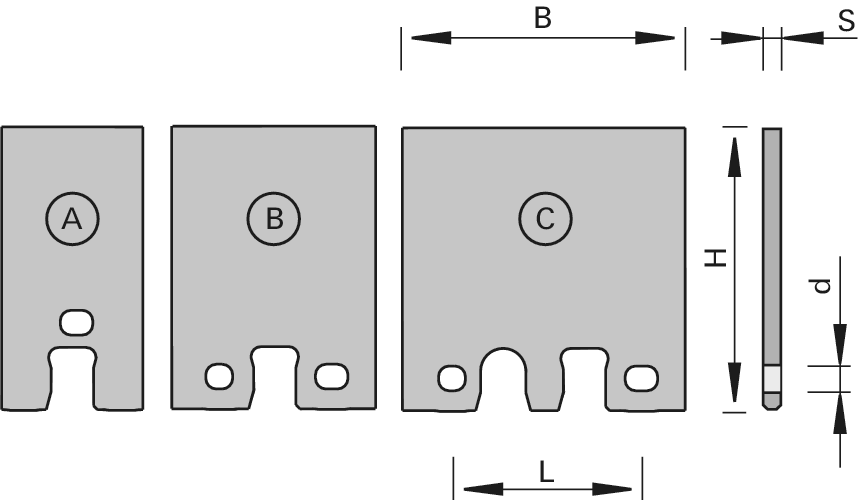

	Dimension [mm]	B [mm]	H [mm]	S [mm]	Ø d [mm]	L [mm]	Type	LEUCODUR	PU [pc.]	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	15x30,4x2	15	30.4	2	3,5		A	HL Board 06	10	N	183056	\|
	20x40,4x2	20	40.4	2	3,5		A	HL Board 06	10	N	183057	\|
	25x40,4x2	25	40.4	2	3,5		A	HL Board 06	10	N	183058	\|
	32x40,4x2	32	40.4	2	3,5	15,8	B	HL Board 06	10	N	182419	\|
	40x40,4x2	40	40.4	2	3,5	26,8	C	HL Board 06	10	N	182420	\|
	50x40,4x2	50	40.4	2	3,5	32,8	C	HL Board 06	10	N	182421	\|
	60x40,4x2	60	40.4	2	3,5	36,8	C	HL Board 06	10	N	182422	\|
	15x30,4x2	15	30.4	2	3,5		A	HL Board 06 topline	10	N	183680	\|
	20x40,4x2	20	40.4	2	3,5		A	HL Board 06 topline	10	N	183681	\|
	25x40,4x2	25	40.4	2	3,5		A	HL Board 06 topline	10	N	183682	\|

Show 1 to 10 of 16 entries
