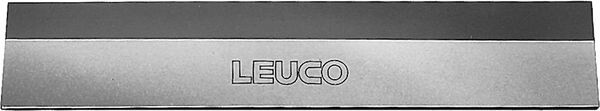

Planing Knives HW

Product

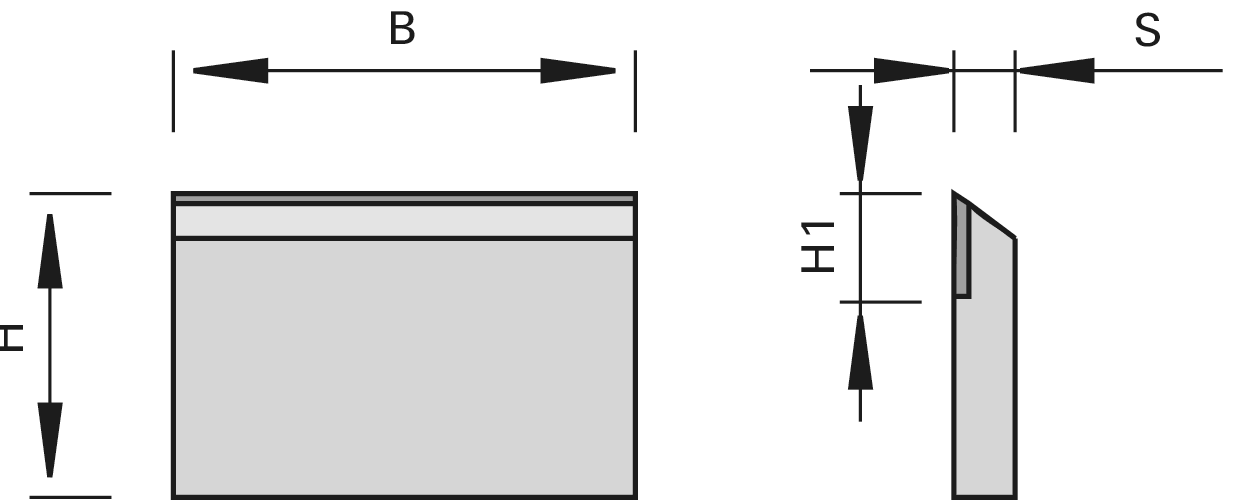

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in planing cutterheads

Design

  • cutting material: HW-tipped for hard woods

Advantages

Notes

  • from safety reasons please always mount knives with equal weight (packing unit VE) opposite each other

Table- and picture caption ...

Dimension
[mm]
B
[mm]
H
[mm]
S
[mm]
H1
[mm]
LEUCODUR PU
[pc.]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

60 30 3 11 HW 2 160586
|
80 30 3 11 HW 2 006204
|
100 30 3 11 HW 2 006205
|
110 30 3 11 HW 2 165329
|
120 30 3 11 HW 2 006206
|
130 30 3 11 HW 2 006207
|
150 30 3 11 HW 2 006208
|
170 30 3 11 HW 2 006209
|
180 30 3 11 HW 2 055649
|
210 30 3 11 HW 2 006210
|
Show 1 to 10 of 46 entries
